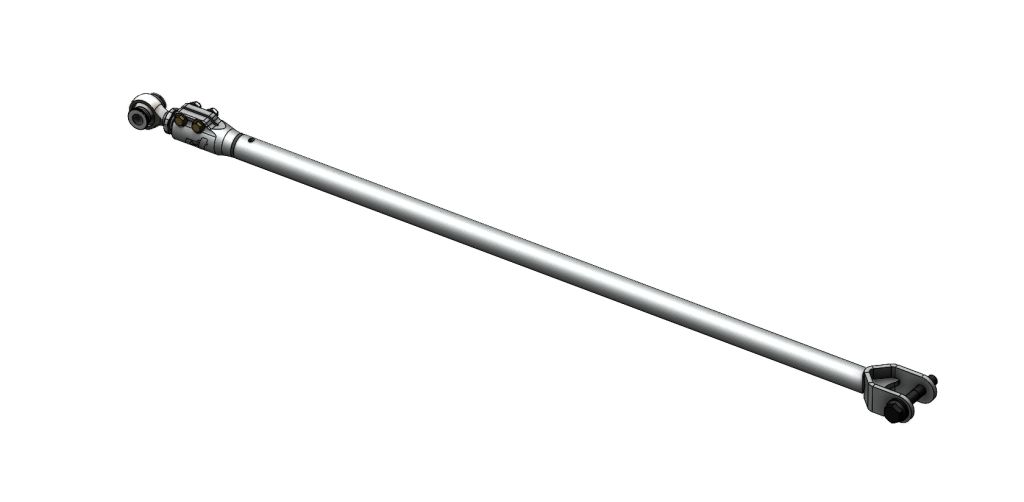

Polaris Pro R Toe Link Rods

Color
$1,030.00
$1,030.00 $1,030.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.



Improve your Polaris Pro R's off-road performance with our robust Toe Link Rods. Designed for improved control and handling, these precision-engineered rods are built tough for extreme terrains. Featuring enhanced articulation and optimized geometry, they provide increased stability and traction. Crafted from corrosion-resistant materials, they ensure long-lasting durability. These Toe Link Rods are easy to install as OEM replacements, offering a reliable solution to fine-tune your vehicle's suspension. Say goodbye to alignment issues and erratic handling – our Toe Link Rods are here to conquer the toughest trails alongside your Pro R.

The factory Pro R toe links come with two major issues. Firstly, the adjuster assembly frequently loosens, causing alignment problems. Secondly, the thin material of the toe link cannot handle the forces experienced during rough terrain, resulting in deflection inside the trailing arm. This inconsistency affects feedback and handling. We set out to resolve these issues.

Our solution involves a spindle-side clevis made from 1/4" Grade 50 steel with an internal gusset to eliminate deflection. The eccentric bolt and slot in the clevis are replaced with a conventional round hole. On the frame side, we introduce our proprietary single-point adjuster without jam nuts. This adjuster comprises a 3/4" LH JMX12T rod end and two machined pieces. The adjuster collar is constructed from heat-treated 17-4 stainless steel with a 1" OD right-hand thread and 3/4" ID left-hand thread, featuring multiple slots. The body housing the adjuster has a 1" ID thread and a slot, secured by (2) 5/16" grade 9 bolts. To adjust the link, loosen the (2) 5/16" bolts and use a 1-1/4" wrench to turn the adjuster collar. The adjuster collar and joint thread and unthread simultaneously, offering easy adjustments with 3/4" of total adjustment in overall length, double the factory allowance. Torque the (2) 5/16" bolts to 25 ft-lbs to secure the link in place.

To address deflection, we use 1.25" .1875" wall 4130 chromoly tubing, which significantly reduces deflection over the length of the link. This tubing provides peace of mind in case the front portion of the toe link encounters rocks.

Our Toe Link Rods are proven at KOH and backed by our lifetime warranty.

NOTE - If you plan to order this part bare for powder coating, avoid sandblasting or powder coating the threads inside the adjuster assembly. These parts have tight tolerances, and improper fitment due to sandblasting or powder coating will not be covered by warranty.

Current lead time for this product is 8 weeks.
